Understanding Total Load Calculations for Small Appliance Branch Circuits in Single-Family Homes

By Olivia ParkerLast Updated June 26, 2025

Introduction

Accurately calculating the total load in volt-amperes (VA) for small appliance branch circuits is critical for ensuring electrical safety and code compliance in single-family dwellings. This guide provides step-by-step instructions, code references, and practical examples to help homeowners, builders, and electricians understand and implement these requirements.

What Are Small Appliance Branch Circuits?

Small appliance branch circuits are dedicated electrical circuits, typically rated at 20 amperes, designed to serve receptacle outlets in areas such as kitchens, dining rooms, pantries, and breakfast rooms. These circuits are required by the National Electrical Code (NEC) to ensure sufficient power for portable appliances and to reduce the risk of overloading general-purpose circuits.

Code Requirements for Small Appliance Branch Circuits

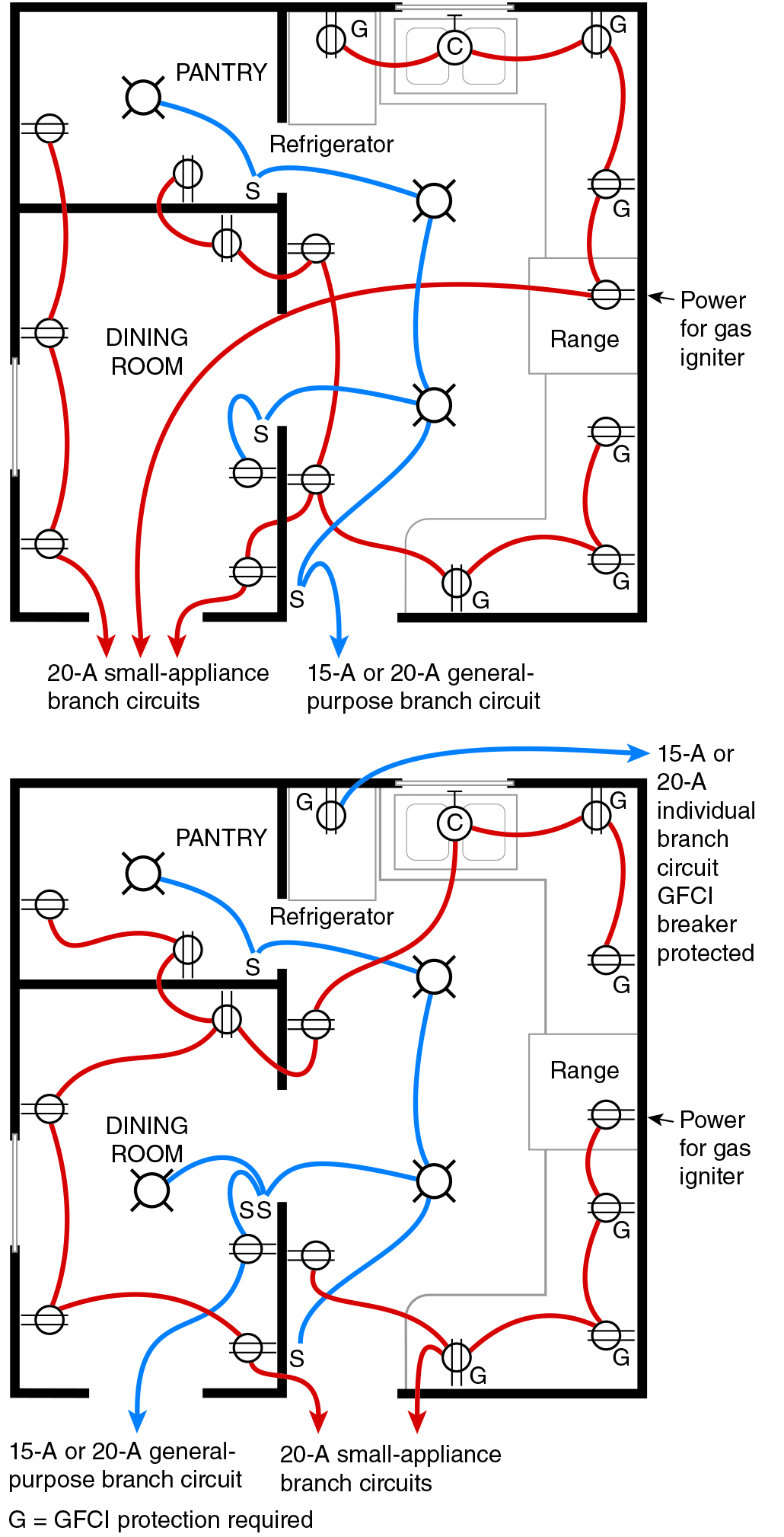

The NEC mandates a minimum of two 20-ampere small appliance branch circuits in every single-family dwelling. These circuits must supply all wall, floor, and countertop receptacle outlets in the kitchen, pantry, dining room, and breakfast room, as well as refrigeration equipment. No other outlets may be served by these circuits [2] [4] .

Total Load Calculation: The 1,500 VA Rule

The NEC requires that each small appliance branch circuit be calculated at 1,500 volt-amperes (VA) . For the minimum two required circuits, the total load is 3,000 VA (2 x 1,500 VA). This value is used when sizing service, feeder, and panel capacities for the dwelling [1] [4] .

1,500 VA per small appliance branch circuit
2 required circuits: 2 x 1,500 VA = 3,000 VA total

This calculation is a fixed value for code compliance and does not change based on the actual number of receptacles or their anticipated loads. If additional small appliance branch circuits are installed, each is also calculated at 1,500 VA. However, for the minimum code-required calculation, two circuits (3,000 VA) is standard [3] .

Step-by-Step Guide to Calculating Total Load

Identify all required areas: Confirm that all kitchen, pantry, dining room, and breakfast room receptacles (including countertop and refrigeration) are served by at least two small appliance branch circuits.
Apply the VA multiplier: For each small appliance branch circuit, assign 1,500 VA.
Calculate the total: Multiply the number of small appliance branch circuits by 1,500 VA. For code minimum, this is 2 x 1,500 VA = 3,000 VA.
Document the calculation: Record this value as part of your service and feeder load calculations.

Example: For a 1,500 square foot dwelling with the minimum required two small appliance branch circuits, the load is:

Small Appliance Branch Circuits: 2 x 1,500 VA = 3,000 VA

Common Questions and Practical Applications

What If More Than Two Circuits Are Installed?

Some larger kitchens or homes with extensive countertop space may require more than two small appliance circuits for convenience or to meet specific needs. In such cases, each additional circuit is also calculated at 1,500 VA. For example, four circuits would be 6,000 VA (4 x 1,500 VA) [3] .

Are There Demand Factors?

For general load calculations, the 1,500 VA per circuit is not reduced by demand factors; it is a fixed requirement for the service calculation. Other appliances and general lighting loads may qualify for demand factors in total service calculation, but not the small appliance branch circuit portion [1] .

How Does This Affect Panel Sizing?

The total load for small appliance branch circuits is just one component of the overall service calculation. Add this value to the general lighting, laundry, and all fixed appliances to determine the required panel size. Always ensure the panel’s ampacity and number of spaces meet or exceed the calculated total load.

Ensuring Code Compliance and Safety

To ensure compliance and maximize safety:

Use only copper conductors unless otherwise specified by appliance manufacturers and local code.
Install ground fault circuit interrupter (GFCI) protection on all receptacles serving kitchen countertops.
Do not serve lighting or other non-permitted outlets from small appliance branch circuits.
Follow manufacturer guidelines for connecting fixed appliances.

Accessing Local Resources and Further Guidance

For up-to-date requirements and code changes, consult the latest edition of the National Electrical Code (NEC) and your local building department. If you need personalized guidance:

Contact your municipal building department or electrical inspector for local code interpretations and permit requirements.
Consult with a licensed electrician for project-specific advice and service load calculations.
Obtain the latest NEC handbook from the National Fire Protection Association (NFPA) for detailed explanations and illustrations.

To locate official NEC requirements or recent code updates, search for “NEC 220.16(a) small appliance branch circuit calculation” on the official NFPA website or through reputable building code resources. The NFPA’s official site provides current code editions and explanatory material.

Alternative Approaches and Additional Considerations

Although the code minimum is two circuits calculated at 3,000 VA, some designers and homeowners opt for additional circuits for convenience, especially in large or gourmet kitchens. Always calculate each additional circuit at 1,500 VA and ensure feeder and panel sizing reflect the total connected load.

In multi-family dwellings or commercial kitchens, additional rules may apply. Consult the NEC and local authorities for these scenarios.

Summary and Key Takeaways

The total load for two small appliance branch circuits in a single-family dwelling is 3,000 VA (2 x 1,500 VA).
This requirement is based on the NEC and is critical for safe, code-compliant electrical design.
Always verify local amendments and consult professionals for complex projects.
For further details, consult the latest NEC edition or your local building department.
